P&ID Compliance Services
Here's How we Do It:
3 Simple Steps to Success
Step 1: Send us your P&IDs in whatever format is easiest (AutoCAD, PDF, or JPEG format)
We know that getting access to your drawings can be a challenge sometimes. That's OK! Whatever format you can access them in works for us, even PDF format.
Step 2: Chemical Engineering Reveiew
Ei's Chemical Engineers Review these for Applicability, and utilize our tools to populate the "LDAR Stream" data in the P&IDs. Any questions or applicability areas we'd like to document? Our team has a honed SOP and set of tools to communicate, verify, and document these for you at the end of the project.
Step 3: Highlighting and QA/QC with Ei’s LDAR Intelligence
Our LDAR Intelligence™ P&ID plugin is used to generate electronically, highlighted P&IDs.
How Are These Better?
Ask any of our customers, and they’ll tell you why our P&IDs are industry leading.
See the compare and contrast table below to see how the P&IDs you're highlighting stack up to Ei's P&IDs. Want to see the full technical qualifications document? Email email@example.com and we'll send it to you.
The final highlighted P&IDs we deliver to our customers are searchable. Need to trace a line throughout the unit? Easily search for the line ID. In-the-field and need to locate a small transmitter on the drawing? Search and zoom into the transmitter in seconds.
Cost Effective to Update
Our LDAR P&ID subscription service leverages our tools to update your P&ID highlights (in future quarters or years) for as little as $10/P&ID. How? Simply send us your new un-highlighted P&IDs and we'll use our tools to identify all changes in the drawings and update the highlights accordingly. Compared to paper P&IDs or CAD layer highlights, our approach is light-years faster.
Viewable Anywhere with no Software Needed
Our smartPDF™ format highlighted P&IDs can be viewed and searched on any device (computer, tablet, or phone) and on any operating system (iOS, Android, Windows) without the need to install any software. We make sure your P&IDs are accessible where you and your team need them.
Exportable Data and Enhanced Deliverable
When we’re done, we not only deliver industry leading P&ID markups, but we give you supplemental deliverables that enhance compliance, such as equipment reports detailing pumps, pressure relief valves, and other equipment according to stream name and applicability determination. Need to know the count of heavy liquid valves in your unit? Easy with Ei's P&IDs.
Enhanced Quality with P&ID Data

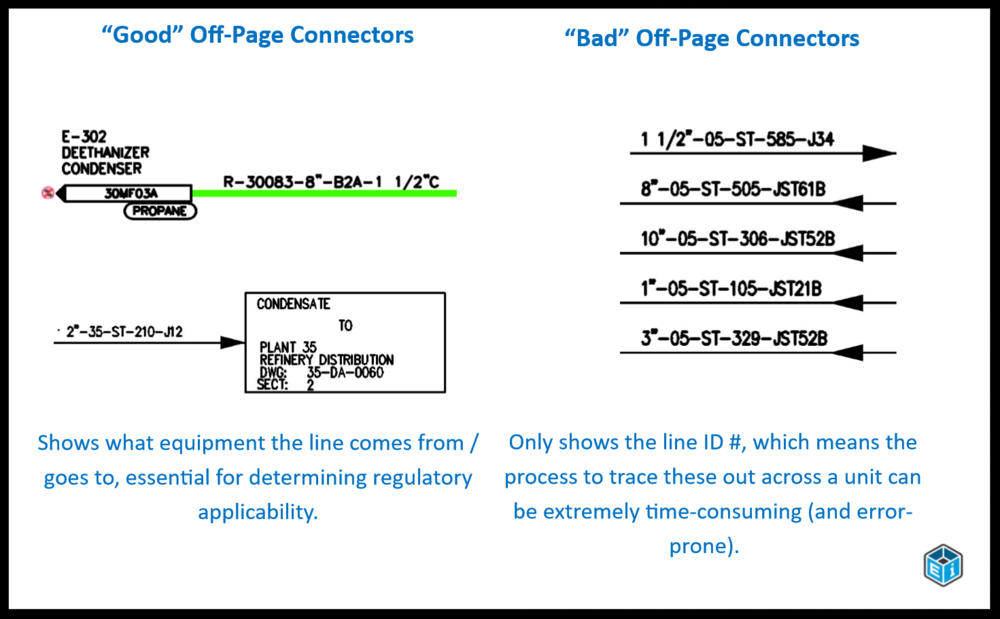

Managing applicability determinations across tangled off-page connectors (OPCs) is next to impossible. With Ei’s Intelligence, we run automated QA/QC checks for potential issues (such as lines changing stream name across pages) automatically by flagging potential issues.

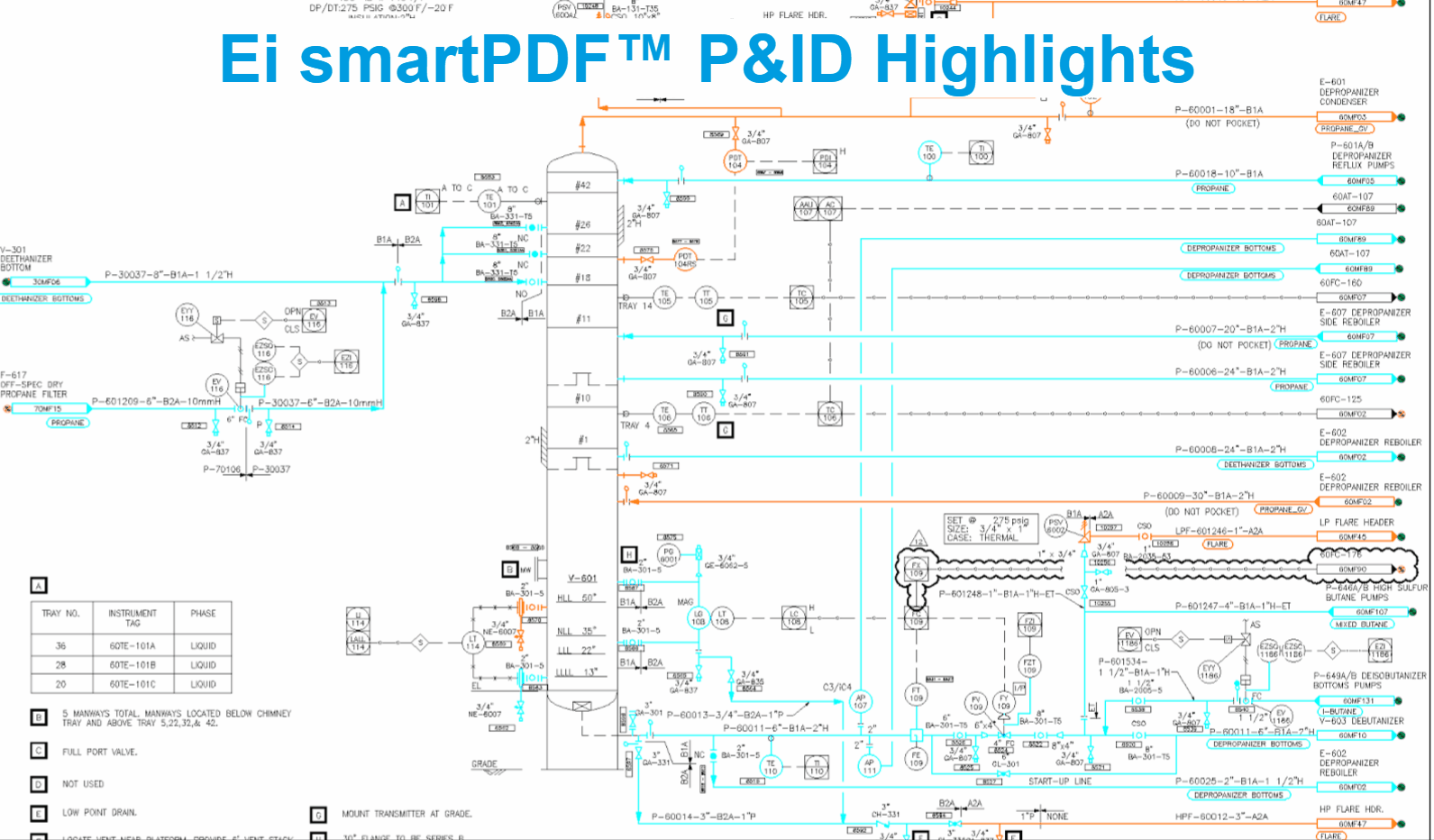

What are smartPDF™ P&IDs?
Your P&IDs are useless if you can't access them when and where they're needed, including in your office and in the field. With smartPDF™ format P&IDs, not only are your P&IDs viewable on any device you use, but they're also searchable and optomized for small screen viewing. This includes searching for:
- All major equipment (vessels, pumps, compressors)
- All minor equipment (instrumentation, relief valves)
- Line IDs
- LDAR Tag and Stream annotations
- Special codes in your P&ID, such as "B/L" to find all batter limit equipment
So, What Do You Get?
Are your P&IDs just color on paper? Without Ei's P&IDs, the answer is yes.
Industry Leading P&ID Markups
The smartPDF™ or AutoCAD DWF format highlighted P&IDs we deliver are electronically highlighted, stream-annotated, and searchable both in the office or in the field using one of our intrinsically-safe tablets.
Enhanced Data Quality Reports
We deliver equipment inventory and applicability reports with our deliverables, giving you the information you need to easily understand the LDAR applicability in each unit. These reports can become a go-to resource for future MOCs, inventory projects, and LDAR inquiries.
- Counts of Valves in LDAR Service by Stream
- Pump and Compressor Applicability
- Process Vessel Applicability
- Heat Exchanger Applicability (Shell and Tube Side)
Ready to Get Started?
it's easy to get started. To learn more, or to request a simple quote, simply email us at firstname.lastname@example.org. Our experts are happy to help answer any questions you may have.
